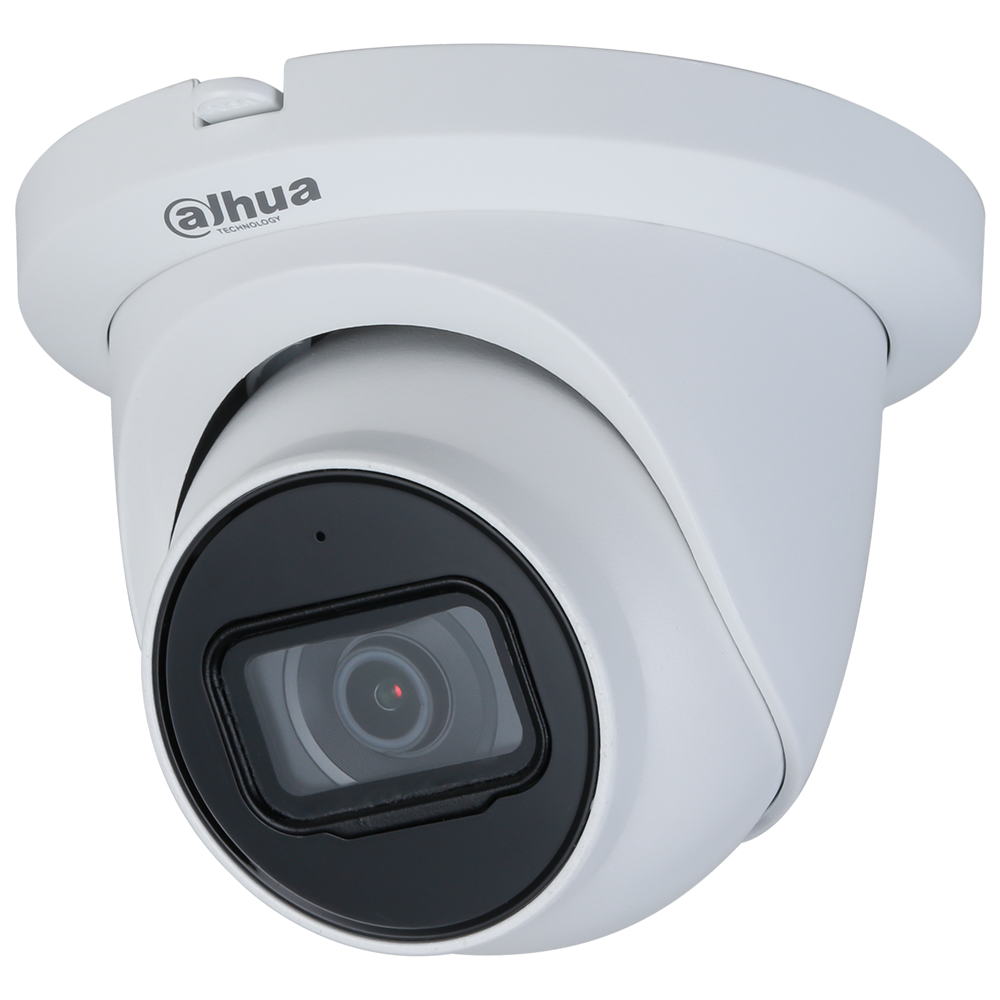

IPC-HDW3849H-AS-PV
8MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera
> 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
> H.265 codec, high compression rate, low bit rate
> Built-in warm illuminator, and the max. illumination distance: 30 m
> ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital
> watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
> Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
> 12V DC/PoE power supply
> IP67 protection
> SMD Plus
> Red and blue flashlight alarm
![]()
XVR7216A-4KL-X
Dahua XVR7216A-4KL-X pro series penta-brid 4K uhd 16ch@8Mpx 5IN1 HDCVI/AHD/HDTVI/PAL/IP h.265+ p2p alarm ivs iot
- Standard CCTV Technology Support: CVBS/HDCVI/HDTVI/AHD + IP@8Mpx (Max. 16 IP) Onvif 16.12
- HDCVI Camera resolution: 4K@7fps, 6Mpx@10fps, 5Mpx@12fps, 4Mpx@15fps, 1080P@15fps, 1080N@25/30fps, 720P@25/30fps, 960H@25/30fps.
- AHD Camera resolution: 5Mpx@12fps, 4Mpx@15fps, 1080P@15fps, 1080N@25/30fps, 720P@25/30fps, 960H@25/30fps.
- HD-TVI Camera resolution: 5Mpx@12fps, 4Mpx@15fps, 1080P@15fps, 1080N@25/30fps, 720P@25/30fps, 960H@25/30fps.
- Video signal transmission over long distances (800-1100m), using coaxial cable.
- Management by XVR via coax cable. the OSD and PTZ camera movement.
- Recording (REC & Live) on all channels in 4K ULTRA HD.
- Video compression H.265+/H.265/H.264+/H.264 dual-stream
- 1/4/8/9/16 channels (IP extension not active) or 1/4/8/9/16/25 (active IP extension), GRID interface and intelligent search
- 3D intelligent positioning with Dahua PTZ dome camera - RS485 port for classical analog PTZs.
- Support and Programming of SMART & Video Analysis IVS : Tripwire, Intrusion (for all channels), Abandoned / Missing, Face Detection. (Crossing lines | Intrusion in the air | Abandoned object | Detecting faces). Programmable on all channels (up to 10 rules per channel (Max.4)). Face Detection (on the first channel only) and Smart Search.
- POS Function (Point of Sale Terminal): This funcion includes POS ticket information overlay and search which can be widely used in retail program.
- IoT Functionality: HDCVI IoT can achieve multi-dimensional surveillance by integrating sensors with monitoring video, which not only can generate the report for analysis but also prevent risk in advance.
- New simplified and intelligent graphical interface (version HDCVI 5.0) - Smart Fan / Coax. Audio functions.
- It Supports 2 SATA HDD up to 10TB, 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
- Supports 4 Input / 1 Output RCA Audio - Two-way Talk.
- 16 inputs + 3 relay alarm outputs
- Multiple network monitoring: Web viewer, CMS (DSS / PSS Smart) Smartphone (DMSS)
- Easy Setup P2P QR scan with Cloud service dedicated Dahua.
- ONVIF Version 16.12, CGI Conformant
